KOREAN EXTRA HEAVY DUTY SHOCK LOAD CAPACITY 400 KG LARGE INJECTION MOLDING MACHINES

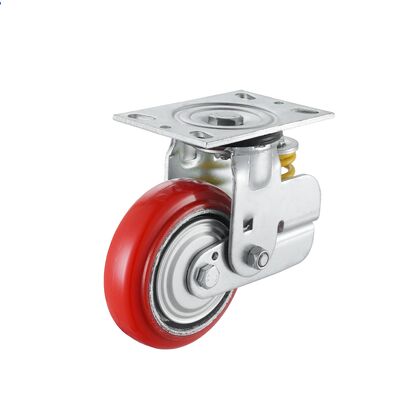

A02 Single Spring Shock Absorbing Caster — Red Cast Iron Core PU Wheel, Galvanized Bracket, 400 kg

Breadcrumb: Home / Heavy Duty Casters / A02 Korean Style Series / 8 Inch (200mm)

The A02 Series is our Korean-style heavy duty shock absorbing caster: protect the equipment above while the wheel below rolls over rough floors.

This 8 inch (200 mm) model combines:

• a RED CAST IRON CORE PU wheel (polyurethane tread cast directly onto a solid iron hub), Shore A 95-98
• a GALVANIZED STEEL BRACKET with a built-in SINGLE COMPRESSION SPRING
• a 6203 precision ball bearing for low rolling resistance

The single spring is pre-loaded between the top plate and the yoke. When the wheel hits a floor joint, threshold or chip pile, the spring compresses vertically and absorbs the impact before it reaches the machine frame.

The 8 inch is the largest model in the A02 family: 248 mm installed height, 400 kg per wheel (approx. 1,600 kg on a 4-wheel set). It is built for the heaviest, bulkiest equipment and the worst floors — large-format laser cutters, diesel generators, steel coil carts, large injection molding machines and aircraft / ground-support handling dollies.

Common search terms covered: 8 inch single spring caster, A02 shock absorbing caster, red iron core PU wheel galvanized bracket, large laser cutter caster, diesel generator caster, steel coil cart caster, heavy duty 400kg caster, Korean style caster, Shore A 95-98 PU wheel, 6203 bearing caster.

Mounting options : Rigid (Fixed) · Swivel · Swivel with Brake · Central Hole
Temperature range: -20 °C to +80 °C (standard PU; short peak +100 °C)
Floor fit : Concrete, painted steel, epoxy, PVC tile — indoor dry use

[1] RED CAST IRON CORE PU WHEEL — Shore A 95-98

• Polyurethane is CAST (poured liquid) onto the iron hub, not glued. The bond is permanent — the tread can never delaminate under load.
• Shore A 95-98 is the upper end of the industrial hardness scale:
  • highly resistant to cutting, chunking and wear from metal chips
  • non-marking on epoxy, painted and PVC floors
  • oil, grease and most solvent resistant
• RED colour = visual wear indicator: when the black iron core shows through the red tread, replace before failure.
• Cast iron core = zero radial deformation, superior heat dissipation versus aluminium, rigid centre keeps the 6203 bearing aligned.

[2] GALVANIZED STEEL BRACKET (5.0 mm pressed steel)

• Hot-dip galvanized coating protects against rust and corrosion far better than painted brackets (paint chips; zinc does not).
• 5.0 mm plate for top plate and yoke = high structural strength, resists bending under off-centre shock loads.
• Clean bright industrial finish, visually matched to the red wheel.

[3] SINGLE SPRING SHOCK ABSORPTION (A02 defining feature)

• A single heavy-duty coil spring is pre-loaded inside the bracket, between the top plate and the yoke.
• On floor joints, thresholds, chip piles and uneven slabs the spring compresses VERTICALLY and cushions the impact before it reaches:
  • large laser resonators and gantries
  • diesel engines and generator sets
  • steel coils and heavy fabricated structures
  • large injection molding machines and moulds
  • the operator pushing the trolley
• Quieter operation, less floor marking, longer bearing life, lower pushing effort, equipment protection.

⚠ Honest note (builds trust, reduces returns):
The SINGLE SPRING provides VERTICAL shock absorption.
- Need side-thrust / anti-side-shock? → DOUBLE SPRING series.
- High-speed towing / continuous dynamic load? → Contact us to select the correct spring rate (spring stiffness).

[4] 6203 PRECISION BALL BEARING

• 6203 ZZ sealed deep-groove ball bearing, common and serviceable.
• Low rolling resistance → lower push/pull force → less fatigue.
• Standard size → easy, low-cost field replacement.

The 8" is the largest, heaviest-duty A02 model. 248 mm installed height and 400 kg/wheel (≈ 1,600 kg system) give it the best ground clearance and the largest contact patch in the series — made for the heaviest equipment and the worst floors.

★ LASER & CNC (large format)

• Large-format fiber laser cutting machine (2040, 2060, 2080)
• CNC gantry milling machine, large CNC router (2513, 3015, 3020)
• Large plasma / oxy-fuel cutting table trolley

★ POWER GENERATION

• Diesel generator set base (100 kVA and above)
• Natural gas / biogas genset skid trolley
• Transformer, switchgear and power-distribution cabinet trolley

★ STEEL & HEAVY FABRICATION

• Steel coil cart, sheet-metal handling trolley
• Heavy welding positioner, roll cage trolley
• Heavy fabrication fixture dolly, mould-storage rack trolley

★ INJECTION MOLDING & DIE CASTING

• Large injection molding machine 500T+ auxiliary platform
• Mold exchange dolly (large dies), material handling trolley
• Die-casting machine auxiliary cart

★ AIR & FLUID POWER (large)

• Large screw air compressor skid, air-receiver tank trolley
• Industrial vacuum tank, dust-collection hopper trolley

★ WAREHOUSE & MOBILE RACKING

• Mobile racking system, warehouse mezzanine trolley
• Heavy-duty pallet dolly, container-handling trolley

★ CONSTRUCTION & MINING (light indoor)

• Rebar / formwork handling trolley
• Construction-site material cart (indoor prefab workshop)

★ AVIATION & GROUND SUPPORT (indoor)

• Aircraft GSE dolly, engine-component transport trolley
• Ground-support equipment handling cart

★ MEDICAL & LAB (oversized, indoor dry only)

• Large medical imaging equipment trolley (CT / MRI auxiliary)
• Heavy laboratory instrument dolly

WHY 8 INCH:
Maximum ground clearance and largest contact patch in the A02 family. Rolls over expansion joints, threshold ramps and chip piles with the least effort. At 400 kg/wheel it is the only A02 model suited to ton-class equipment. The single spring is essential here: heavy machines generate the strongest floor shocks, and the spring protects both the equipment and the floor.

• Highest capacity in the series — 400 kg/wheel (≈ 1,600 kg system)
• Best ground clearance — clears expansion joints and ramps easily
• Largest contact patch = lowest ground pressure, safest on weak floors
• Tallest installed height (248 mm) — check machine clearance first
  → When the equipment is ton-class or the floor is the worst in the shop, choose the 8".

1. Single spring shock absorption built into galvanized bracket
2. Red cast iron core PU wheel — Shore A 95-98, non-marking
3. Cast PU permanently bonded to iron core (no delamination)
4. Hot-dip galvanized 5.0 mm steel bracket — rust resistant
5. 6203 precision ball bearing — smooth roll, low push force
6. Rigid / Swivel / Swivel+Brake / Central Hole options
7. Load capacity 400 kg / wheel (≈ 1,600 kg system)
8. Red tread = visual wear indicator
9. Oil, grease and solvent resistant tread
10. Quiet operation, floor protective
11. Standard 6203 bearing — easy field replacement
12. OEM/ODM customization available

The A02 8 inch single spring shock absorbing caster is the largest and heaviest-duty model in the series, built for ton-class equipment on rough industrial floors. It combines a red cast iron core polyurethane wheel (Shore A 95-98), a galvanized steel bracket with integrated coil spring, and a 6203 precision bearing. Typical applications include large-format fiber laser cutting machines (2040 / 2060 / 2080), CNC gantry mills, large CNC routers (2513 / 3015 / 3020), diesel generator sets (100 kVA and above), natural-gas and biogas genset skids, transformers and switchgear trolleys, steel coil carts, sheet-metal handling trolleys, heavy welding positioners, large injection molding machines (500T+) and their mould-exchange and material trolleys, die-casting auxiliaries, large screw air compressors, industrial vacuum tanks, mobile racking systems, heavy pallet dollies, construction-site material carts, aircraft GSE dollies and heavy laboratory instrument trolleys. The iron core carries the load with zero radial deformation; the high-hardness PU tread survives metal chips while staying non-marking on epoxy and painted floors; the single spring absorbs impacts from floor joints and thresholds so vibration never reaches the machine frame. Rated 400 kg per wheel, approx. 1,600 kg system on a 4-wheel set.

Q1: What machines use the 8 inch 400 kg A02?
A: Large-format laser cutters (2040/2060/2080), diesel gensets (100 kVA+), steel coil carts, large injection molding machines (500T+), gantry CNC routers, transformers, large air compressors and aircraft GSE dollies.

Q2: Is 248 mm installed height a problem?
A: It is the tallest in the series. Check the gap between your machine base and the floor before ordering — if clearance is tight, step down to 6".

Q3: Can the single spring handle a 1.6-ton system load?
A: Yes, within spec: 400 kg × 4 wheels = 1,600 kg, on a flat level floor with evenly distributed load. For higher loads or dynamic towing, contact us for spring-rate and bracket selection.

Q4: Is the 8" suitable for outdoor use?
A: The galvanized bracket and PU wheel suit dry indoor industrial use. For rain, seawater or washdown, choose our stainless steel series.

Q5: Do you stock the 8" with brake?

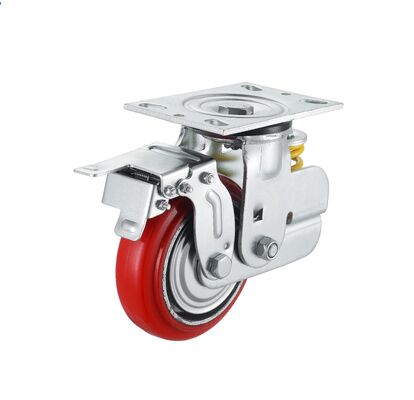

A: Yes — A02-T-KU-850 is Swivel + Brake, 400 kg, 248 mm. All 4/5/6/8 inch sizes are available in Rigid / Swivel / Swivel+Brake / Central Hole.

We are a professional industrial caster manufacturer with MORE THAN 10 YEARS of factory experience. We operate our own production lines and quality control lab, and we welcome OEM / ODM orders for any combination of wheel and bracket.

We can customize:

• Wheel material : PU / TPR / Rubber / Nylon / PP / Phenolic
• Wheel hardness : Shore A 70 – 100
• Wheel colour : Red / Orange / Black / Grey / Blue / Custom
• Core material : Cast iron / Aluminium / Nylon
• Bracket / fork finish : Galvanized / Zinc-plated / Powder coated / 304 SS / 316 SS
• Mounting type : Top plate / Threaded stem / Expanding stem / Central bolt hole
• Brake / lock : Total lock / Directional lock / Side lock / No brake
• Bearing : 6202 / 6203 / 6204 / 6303 / stainless sealed
• Load rating : From 100 kg up to 1,000 kg+ per wheel
• Special features : Anti-static (ESD) / High-temp / Food-grade / Conductive / Flame-retardant / Explosion-proof / Dual wheel

Tell us your application, required load, wheel diameter and mounting style — we will engineer the right wheel-and-bracket combination for you.
