Extra Heavy Duty Casters
Created with Pixso.

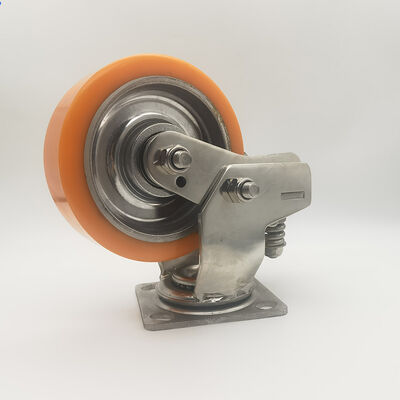

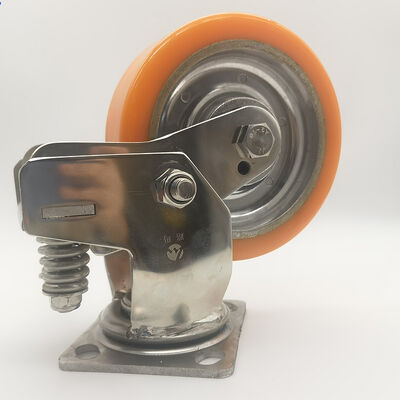

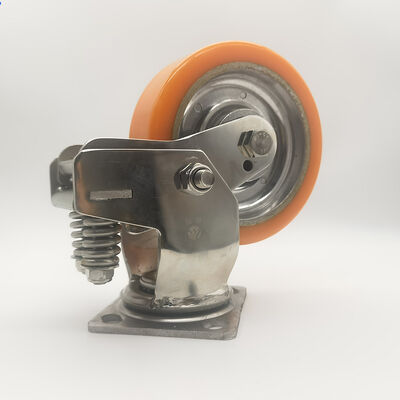

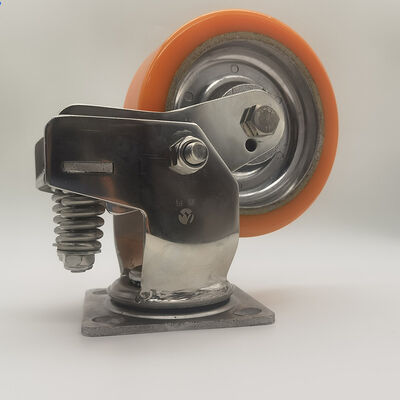

Heavy Duty Castors Dual Stainless Steel Spring Load Bearing Shock Absorber PU Wheels Casters Automotive Industry

Heavy Duty Castors Dual Stainless Steel Spring Load Bearing Shock Absorber PU Wheels Casters Automotive Industry

Heavy Duty Castors Dual Stainless Steel Spring Load Bearing Shock Absorber PU Wheels Casters Automotive Industry

Brand Name: Luma
Model Number: ORANGE-001
MOQ: 4
Price: USD 40 .2 brake /USD 37.8 Swivel/USD 36.6 Rigid
Payment Terms: L/C,wechat,alipay
Supply Ability: 100000
Detail Information
Product Description
Detail Information
Place of Origin:
Zhongshan Guandong province China
Inches:
6 Inches
Braketype:
Brakin Side/ Brake/ Swivel/ Fixed
Productname:
Industrial Wheel Casters
Color:
Black / Grey / Blue
Usage:
Industrial Manufacturing/ Warehousing And Logistics /Medical And Healthcare/ Commercial And Retail/ Office And Institutional Settings/ Home And Furniture
Material:
PU
Finish:
Zinc Plated
Bearingtype:
Ball Bearing
Wheeltype:
Braking Side Brake Swivel Fixed
Mountingtype:
Top Plate
Sample:
1pcs ，price Add 50%
Packaging Details:
bags and cartons
Product Description
Stainless Steel Double Spring with Aluminum Core & Polyurethane Wheel Heavy-Duty Caster
  • Material Composition:
    • Housing: 304/316 stainless steel (corrosion-resistant, suitable for harsh environments)
    • Spring System: Dual spring shock absorption (reduces impact by 40-60% compared to single spring)
    • Wheel Core: Aluminum alloy (lightweight yet high load capacity)
    • Wheel Surface: Polyurethane (non-marking, abrasion-resistant, hardness 85-95A)
  • Specialized Design:
    • Sealed ball bearings (IP54 rating, dust/water-resistant)
    • Bolt-hole or swivel mounting options
    • Optional brake systems (side-lock or total-lock)
Product Specifications
Braking/Activation/Orientation Braking /Side braking/ Swivel / Fixed
Size  5 inches
Wheel Material PU
Base Plate Support Material Q235
Bearing 6202 Bearing
Installation Height 190
Base Plate Size 115*100
Hole Distance 82*72
Box Size 49*28.5*25cm
Matching Specifications
  • Set 1: 2*brakes + 2* fixed
    Set 2: 2*swivel  + 2* fixed

Heavy Duty Castors Dual Stainless Steel Spring Load Bearing Shock Absorber PU Wheels Casters Automotive Industry 0


Load Capacity

Condition Dynamic Load (per caster) Static Load (per caster)
Standard Use 300-500 kg 800-1,200 kg
High-Temp (≤120°C) 250-400 kg

600-900 kg

Primary Applications

  1. Automotive Industry:
    • Assembly line tool carts, battery handling equipment, paint shop trolleys
    • Advantages: Electrostatic dissipation, oil/chemical resistance, low noise (<65 dB)
  2. Other Heavy-Duty Scenarios:
    • Aerospace machinery transport, medical imaging device movers, warehouse logistics

Technical Data Summary

  • Temperature Range: -30°C to +120°C
  • Wear Resistance: Polyurethane tread lifespan ≈ 3,000 km (on concrete floors)

  • Why Choose This for Automotive Needs?

    • Corrosion Resistance: Withstands automotive chemicals (e.g., brake fluid, lubricants)
    • Shock Absorption: Dual springs protect sensitive equipment during movement
    • Floor Protection: Polyurethane wheels prevent scratches on epoxy-coated automotive floors

Heavy Duty Castors Dual Stainless Steel Spring Load Bearing Shock Absorber PU Wheels Casters Automotive Industry 1
Heavy Duty Castors Dual Stainless Steel Spring Load Bearing Shock Absorber PU Wheels Casters Automotive Industry 2

Heavy Duty Castors Dual Stainless Steel Spring Load Bearing Shock Absorber PU Wheels Casters Automotive Industry 3



Company Services & Process Overview
Heavy Duty Castors Dual Stainless Steel Spring Load Bearing Shock Absorber PU Wheels Casters Automotive Industry 4
