5 Inch / 125mm Grey TPR Wheel 50mm Quiet Non Marking Caster For Epoxy Concrete Floor Mold Trolley Grey TPR Caster

5 Inch / 125mm — Korean-Style Grey TPR Fixed Caster

Product Title:

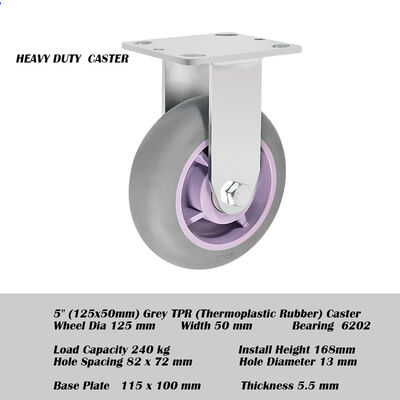

5 Inch 125mm Korean-Style Grey TPR Fixed Caster, 50mm Wide Tread, 240kg, 6202 Bearing, 115×100mm Top Plate

Product Overview

Medium-heavy rigid caster with grey TPR wheel. Quiet rolling, floor-protecting, and stable for factory carts and storage equipment.

• Wheel Diameter: 5" / 125 mm
• Tread Width: 50 mm
• Wheel Material: Grey TPR (Thermoplastic Rubber)
• Load Capacity: 240 kg per caster
• Bearing: 6202 Ball Bearing
• Installation Height: 165 mm
• Hole Spacing: 82×72 mm
• Hole Diameter: Ø13 mm
• Top Plate Size: 115×100 mm
• Base Plate Thickness: 5.5 mm
• Bracket Thickness: 5.5 mm (Base & Fork)
• Type: Fixed / Rigid
• Model: B01-R-8KTPR-550

Features & Advantages

• Quiet, non-marking grey TPR tread.
• 240kg load capacity for medium-heavy duty use.
• 50mm flat tread for stability.
• 6202 ball bearing for smooth operation.
• 5.5mm galvanized bracket, rigid non-spring build.

Application Scenarios

Factory carts, storage racks, logistics trolleys, assembly line equipment, and indoor material handling.

Application Products — Where the 5 inch (125 mm) Size Is Used

• Factory/material handling carts
• Storage and picking trolleys
• Assembly line equipment bases
• Logistics dollies
• Mobile work platforms (light-medium duty)

Material & Build Advantages

Grey TPR balances elasticity and durability. Low noise, non-marking, oil-resistant surface. Galvanized metal parts resist rust. Standard top plate fits common mounting layouts.

PP wheel vs. TPR wheel vs Rubber wheel vs Nylon wheel — Side by Side

Custom Orders — 10+ Years Professional Caster Manufacturer

We are a professional industrial caster manufacturer with more than 10 years of factory experience. We welcome OEM / ODM orders and can customize any combination of wheel and bracket to your requirements — including different materials and bracket thicknesses. Just send us your drawing, sample or requirement and we will engineer the right caster for your application.

• Wheel material: PP / PU / TPR / Rubber / Nylon / Phenolic / Forged steel / Cast iron / Aluminium core rubber
• Wheel hardness: Shore A 70–100 (or D scale for PP / Nylon)
• Wheel colour: Any RAL colour
• Core / centre: Aluminium core, iron core, no core
• Bracket: Galvanized / Stainless 304 / Stainless 316 / Painted — in various thicknesses
• Bracket thickness & top plate size: to your drawing (standard A05 bracket is 5.5 mm; we can go thicker for higher loads)
• Mounting type: Top plate / Threaded stem / Bolt hole / Expanding adapter / Central hole
• Brake type: No brake / Side lock / Total lock / Direction lock
• Bearing: Plain / Roller / 6203 / 6204 / 6205 / 6305 etc.
• Load rating: From 100 kg up to 1,000 kg+ per caster
• Special features: Anti-static (ESD), high-temperature, food-grade, explosion-proof, dual-wheel, spring suspension

Get a Quote

Contact us today for a quote, free sample or engineering consultation. As a professional industrial caster manufacturer with over 10 years of factory experience, we are ready to help you select the right size and configuration for your application.

Welcome to Contact:
