100mm Korean Style TPR Fixed Caster Light Duty Grey TPR Trolley Caster Non Marking Caster For Warehouse Cart

Korean style TPR fixed swivel brake caster 4 5 6 8 inch

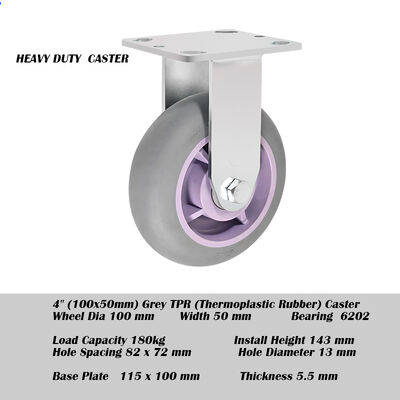

4 Inch 100mm Korean-Style Grey TPR Fixed Caster, 50mm Wide Tread, 180kg, 6202 Bearing, 115×100mm Top Plate

Product Overview

Heavy duty rigid/fixed caster with grey TPR tread. Suitable for industrial trolleys, warehouse carts, workbenches, and equipment moving on flat floors.

• Wheel Diameter: 4" / 100 mm
• Tread Width: 50 mm
• Wheel Material: Grey TPR (Thermoplastic Rubber)
• Load Capacity: 180 kg per caster
• Bearing: 6202 Ball Bearing
• Installation Height: 143 mm
• Hole Spacing: 82×72 mm
• Hole Diameter: Ø13 mm
• Top Plate Size: 115×100 mm
• Base Plate Thickness: 5.5 mm
• Bracket Thickness: 5.5 mm (Base & Fork)
• Type: Fixed / Rigid
• Model: B01-R-8KTPR-450

Features & Advantages

• Quiet & floor-safe: TPR tread is non-marking and absorbs minor vibration.
• Stable rigid structure with 5.5mm bracket.
• 50mm flat/plain tread for straight-line tracking.
• 6202 ball bearing for smooth, low-resistance movement.
• No spring design — keeps equipment height stable.

Application Scenarios

Light-duty industrial trolleys, warehouse carts, workbenches, display racks, and equipment stands on flat indoor floors.

Application Products — Where the 4 inch (100 mm) Size Is Used

• Workshop trolleys
• Light warehouse carts
• Workbenches and tool stands
• Display racks and fixtures
• Medical/cleanroom equipment bases (where floor protection matters)

Material & Build Advantages

Grey TPR offers rubber-like elasticity with plastic durability. Non-marking, low-noise, and gentle on epoxy/concrete floors. Galvanized bracket coating adds corrosion resistance. Universal 115×100mm top plate for easy mounting.

PP wheel vs. TPR wheel vs Rubber wheel vs Nylon wheel — Side by Side

Custom Orders — 10+ Years Professional Caster Manufacturer

We are a professional industrial caster manufacturer with more than 10 years of factory experience. We welcome OEM / ODM orders and can customize any combination of wheel and bracket to your requirements — including different materials and bracket thicknesses. Just send us your drawing, sample or requirement and we will engineer the right caster for your application.

• Wheel material: PP / PU / TPR / Rubber / Nylon / Phenolic / Forged steel / Cast iron / Aluminium core rubber
• Wheel hardness: Shore A 70–100 (or D scale for PP / Nylon)
• Wheel colour: Any RAL colour
• Core / centre: Aluminium core, iron core, no core
• Bracket: Galvanized / Stainless 304 / Stainless 316 / Painted — in various thicknesses
• Bracket thickness & top plate size: to your drawing (standard A05 bracket is 5.5 mm; we can go thicker for higher loads)
• Mounting type: Top plate / Threaded stem / Bolt hole / Expanding adapter / Central hole
• Brake type: No brake / Side lock / Total lock / Direction lock
• Bearing: Plain / Roller / 6203 / 6204 / 6205 / 6305 etc.
• Load rating: From 100 kg up to 1,000 kg+ per caster
• Special features: Anti-static (ESD), high-temperature, food-grade, explosion-proof, dual-wheel, spring suspension

Get a Quote

Contact us today for a quote, free sample or engineering consultation. As a professional industrial caster manufacturer with over 10 years of factory experience, we are ready to help you select the right size and configuration for your application.
