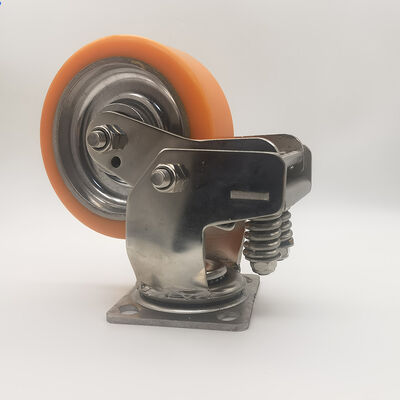

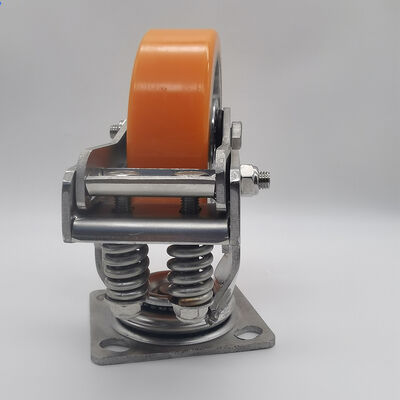

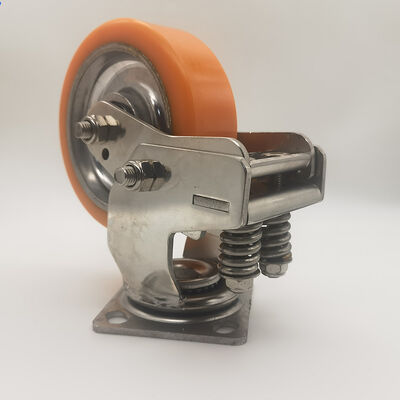

6 Inch Heavy-Duty Caster with Dual Spring Shock Absorption, Corrosion-Resistant Stainless Steel, and Non-Marking Polyurethane Wheels

6 Inch Heavy-Duty Caster with Dual Spring Shock Absorption, Corrosion-Resistant Stainless Steel, and Non-Marking Polyurethane Wheels

Brand Name: Luma
Model Number: ORANGE-001
MOQ: 4
Price: USD 40 .2 brake /USD 37.8 Swivel/USD 36.6 Rigid
Payment Terms: L/C,wechat,alipay
Supply Ability: 100000
Detail Information
Product Description
Detail Information
Place of Origin:
Zhongshan Guandong province China
Inches:
6 Inches
Braketype:
Brakin Side/ Brake/ Swivel/ Fixed
Productname:
Industrial Wheel Casters
Color:
Black / Grey / Blue
Usage:
Industrial Manufacturing/ Warehousing And Logistics /Medical And Healthcare/ Commercial And Retail/ Office And Institutional Settings/ Home And Furniture
Material:
PU
Finish:
Zinc Plated
Bearingtype:
Ball Bearing
Wheeltype:
Braking Side Brake Swivel Fixed
Mountingtype:
Top Plate
Sample:
1pcs ，price Add 50%
Packaging Details:
bags and cartons
Highlight:

Dual Steel Spring Shock Absorber casters

,

industry Heavy Duty Steel Castors

,

automotive equipment Steel Castors

Product Description
6 Inches Industry Heavy Duty Steel Castors with Dual Steel Spring Shock Absorber and PU Wheels
Product Overview

Stainless steel double spring casters with aluminum core and polyurethane wheels designed for heavy-duty industrial applications in automotive and manufacturing environments.

Material Composition
  • Housing: 304 stainless steel (corrosion-resistant, suitable for harsh environments)
  • Spring System: Dual spring shock absorption (reduces impact by 40-60% compared to single spring)
  • Wheel Core: Aluminum alloy (lightweight yet high load capacity)
  • Wheel Surface: Polyurethane (non-marking, abrasion-resistant, hardness 85-95A)
Specialized Design Features
  • Sealed ball bearings (IP54 rating, dust/water-resistant)
  • Bolt-hole or swivel mounting options
  • Optional brake systems (side-lock or total-lock)
Product Specifications
Braking/Orientation: Braking / Side braking / Swivel / Fixed
Size: 5 inches
Wheel Material: PU
Base Plate Material: Q235
Bearing: 6202 Bearing
Installation Height: 190 mm
Base Plate Size: 115 × 100 mm
Hole Distance: 82 × 72 mm
Box Size: 49 × 28.5 × 25 cm
Matching Specifications
  • Set 1: 2 brakes + 2 fixed
  • Set 2: 2 swivel + 2 fixed
6 Inch Heavy-Duty Caster with Dual Spring Shock Absorption, Corrosion-Resistant Stainless Steel, and Non-Marking Polyurethane Wheels 0
Load Capacity
Condition Dynamic Load (per caster) Static Load (per caster)
Standard Use 300-500 kg 800-1,200 kg
High-Temp (≤120°C) 250-400 kg 600-900 kg
Primary Applications
  • Automotive Industry: Assembly line tool carts, battery handling equipment, paint shop trolleys
  • Other Heavy-Duty Scenarios: Aerospace machinery transport, medical imaging device movers, warehouse logistics
Technical Data Summary
  • Temperature Range: -30°C to +120°C
  • Wear Resistance: Polyurethane tread lifespan ≈ 3,000 km (on concrete floors)
  • Noise Level: <65 dB
  • Chemical Resistance: Withstands automotive chemicals including brake fluid and lubricants
  • Electrostatic Dissipation: Prevents static buildup in sensitive environments
Why Choose This for Automotive Needs?
  • Corrosion Resistance: Withstands automotive chemicals (e.g., brake fluid, lubricants)
  • Shock Absorption: Dual springs protect sensitive equipment during movement
  • Floor Protection: Polyurethane wheels prevent scratches on epoxy-coated automotive floors
6 Inch Heavy-Duty Caster with Dual Spring Shock Absorption, Corrosion-Resistant Stainless Steel, and Non-Marking Polyurethane Wheels 1 6 Inch Heavy-Duty Caster with Dual Spring Shock Absorption, Corrosion-Resistant Stainless Steel, and Non-Marking Polyurethane Wheels 2 6 Inch Heavy-Duty Caster with Dual Spring Shock Absorption, Corrosion-Resistant Stainless Steel, and Non-Marking Polyurethane Wheels 3
