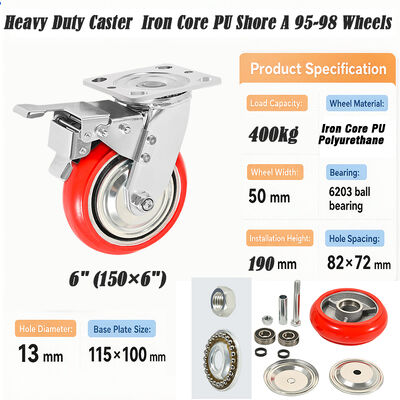

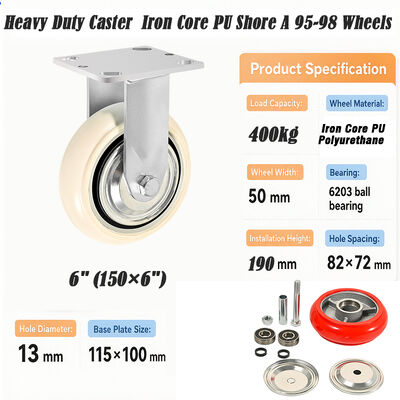

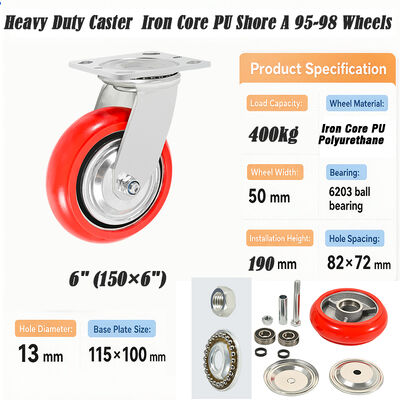

6 Inch Iron Core Polyurethane Caster 400kg Heavy Duty Rigid Caster No Spring 150mm Loading Cart Caster

6 Inch / 150mm Iron Core PU Heavy Duty Caster (Swivel / Side Brake / Total Brake)

6 Inch Heavy Duty Iron Core Polyurethane (PU) Caster – 400kg Load, Rigid Mount, No Spring Shock Absorption

Short Description

6" (150mm) iron-core PU wheel caster, 400kg capacity, 6203 bearing, 190mm height, 115×100mm plate, 5.5mm bracket. SKUs: swivel, side brake, total brake. Rigid, non-spring design — not for shock/vibration loads.

Product Features

• Wheel: Iron Core Polyurethane (PU), Shore A 95-98, 150mm (6") × 50mm
• Load Capacity: 400kg / caster
• Bearing: 6203
• Installation Height: 190mm
• Top Plate: 115 × 100mm | Hole Spacing: 82 × 72mm | Hole Dia.: 13mm
• Bracket / Plate Thickness: 5.5mm
• Rigid fork, zinc-plated/galvanized steel
• SKUs: 80I-S-KU-650 (Swivel/Activity), 80I-E-KU-650 (Side/Edge Brake), 80I-T-KU-650 (Total Brake)

Product Advantages

• 400kg rating for heavier industrial carts
• Larger diameter rolls easier over small floor joints (still rigid — not for bumps)
• Iron core maintains shape under sustained load
• PU Shore A 95-98: excellent wear, floor-safe, quiet
• Choice of brake configurations

Applications by Variant (6 Inch)

• Swivel 80I-S-KU-650: Heavy stock trolleys, warehouse dollies, industrial racks, transport carts
• Side Brake 80I-E-KU-650: Loading/unloading platforms, heavy maintenance carts, staging tables
• Total Brake 80I-T-KU-650: Stationary heavy equipment stands, jigs, workholding fixtures on flat floors

Applicable Product Names

Heavy duty warehouse trolley caster, industrial rack wheel, 6 inch PU caster, loading cart caster, maintenance dolly, equipment platform caster.

NOT Suitable / Where NOT to Use

Do not use on CNC routers, scissor lifts, generators, vibrating screens, outdoor rough ground, or any application requiring shock absorption. This caster is rigid and will transfer impact to the equipment/floor.

SEO Hot Keywords

6 inch heavy duty caster, 150mm iron core PU wheel, 400kg caster, rigid swivel caster, side brake industrial caster, total brake caster, 6203 bearing, non-spring PU caster, 115x100 top plate.

Google Ranking Target Phrases

• 6 inch iron core polyurethane caster 400kg
• heavy duty rigid caster no spring 150mm
• 6" side brake warehouse caster
• total brake caster 400kg load
• industrial PU wheel caster 6 inch

FAQ

Q: Does it absorb vibration?

A: No. It has no spring or elastic suspension.

Q: What's the difference between 80I-E and 80I-T?

A: 80I-E is side/edge brake (wheel lock). 80I-T is total brake (wheel + swivel lock).

Q: Can four casters support 1600kg?

A: Theoretical total is 1600kg, but we recommend safety margin and even load distribution on flat, clean floors.

Q: Is it for scissor lifts?

A: No. Scissor lifts need shock/impact consideration and often different steering/locking geometry.

5 inch caster 150mm heavy duty caster iron core PU wheel PU caster bracket caster 6203 bearing caster Shore A 90 PU non-marking industrial caster
