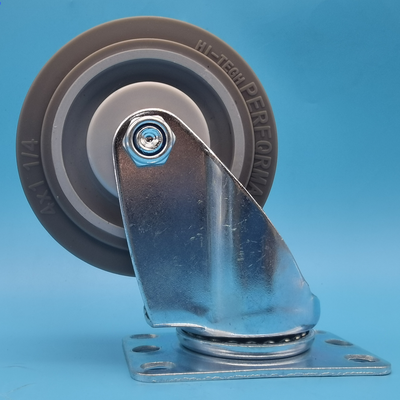

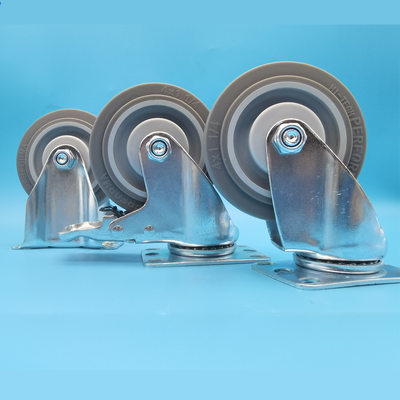

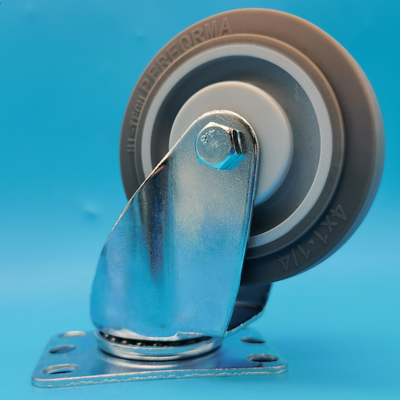

Upgrade your light-duty equipment with our 2-inch Grey TPR (Thermoplastic Rubber) Caster Wheels. Designed for smooth, quiet, and non-marking performance, this series features a durable hot-rolled steel plate bracket and a high-resilience grey TPR tread. With a wheel width of 28mm and a diameter of 50mm, these casters are the perfect solution for office furniture, medical carts, and retail displays. Choose from 5 mounting configurations: Rigid (Fixed), Swivel, Swivel with Side Brake, Central Hole Swivel, and Central Hole Swivel with Brake to match your exact maneuverability and safety needs.
Feature: High-elasticity Thermoplastic Rubber (TPR) tread with a 28mm width.
Advantage: Combines the durability of hard wheels with the quiet, floor-protecting qualities of rubber. Won't scratch or leave marks on wood, tile, or laminate flooring.
Benefit: Ideal for indoor environments requiring cleanliness and floor care.
Feature: Sturdy hot-rolled steel construction with a zinc-plated finish.
Advantage: Offers excellent resistance to corrosion and rust, ensuring structural integrity under daily loads.
Benefit: Provides a reliable, long-lasting connection to your equipment.
Feature: 50mm wheel diameter, 28mm tread width.
Advantage: Low installation height, making it perfect for furniture and equipment where clearance is limited.
Benefit: Maintains a sleek profile while providing smooth mobility.
Rigid/Fixed: Moves in a straight line; best for stability and towing.
Swivel: 360-degree rotation for maximum agility in tight spaces.
Swivel + Brake: Locks wheel rotation to prevent unwanted movement on slopes or during stationary use.
Central Hole (Top Plate with Center Hole): Allows for pin-type mounting or central bolting, offering an alternative to standard 4-hole plates.
Central Hole + Brake: Combines the flexibility of central mounting with essential braking safety.
Feature: Precision bearings (typically plain or roller bearings for this class) encased in TPR.
Advantage: Reduces noise pollution significantly compared to hard nylon or cast iron wheels.
Benefit: Enhances user experience in offices, hospitals, and libraries.
|
Parameter |
Value |
|---|---|
|
Wheel Material |
TPR (Thermoplastic Rubber) |
|
Wheel Color |
Grey |
|
Wheel Diameter |
50mm (2 inches) |
|
Wheel Width |
28mm |
|
Bracket Material |
Hot-Rolled Steel Plate (Zinc Plated) |
|
Mounting Type |
Top Plate (Standard 4-Hole) / Top Plate with Central Hole |
|
Available Configurations |
Rigid, Swivel, Swivel + Brake, Central Hole, Central Hole + Brake |
|
Load Capacity |
Approx. 30-40 kg per caster (Light Duty) |
|
Application |
Indoor, Hard Floors, Carpet |
Office Furniture: Computer desks, filing cabinets, office chairs, and mobile pedestals.
Medical & Healthcare: Hospital bedsides, medical instrument carts, and laboratory equipment.
Retail & Display: Clothing racks, display stands, and shopping carts.
Light-Duty Trolleys: Hotel housekeeping carts, tool carts, and storage bins.
Home & Garden: Kitchen islands, DIY workbenches, and plant stands.
|
Type |
Maneuverability |
Safety/Brake |
Best For |
|---|---|---|---|
|
Rigid (Fixed) |
Moves only forward/backward |
None |
Straight-line movement, stability |
|
Swivel |
360° Rotation |
None |
Tight corners, agile movement |
|
Swivel + Brake |
360° Rotation |
Locks Wheel |
Slopes, loading docks, stationary use |
|
Central Hole |
360° Rotation |
None |
Equipment requiring central pin mounting |
|
Central Hole + Brake |
360° Rotation |
Locks Wheel |
Safety-critical central mount setups |
Q: Can these casters be used on carpet?
A: Yes, the 28mm wide TPR wheels provide enough surface area to roll smoothly over low-pile carpets and thresholds, though they perform best on hard floors.
Q: What is the difference between the Standard Top Plate and the Central Hole?
A: The Standard Top Plate uses 4 holes for a secure, widespread mount. The Central Hole version features a single large hole in the center of the plate, allowing for pin-mounting or a single central bolt, which is common in certain furniture or caster interchange systems.
Q: How much weight can each caster hold?
A: As a light-duty caster, each wheel typically supports 30-40 kg. For a 4-wheel cart, the total capacity would be approximately 90-120 kg ( factoring in a safety factor).
Q: Will the grey TPR wheels leave marks on my wooden floor?
A: No. TPR is specifically chosen for its non-marking properties. It will not leave black streaks or scratches on hardwood, vinyl, or tile floors.
