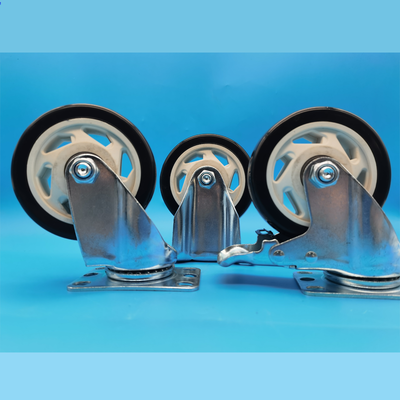

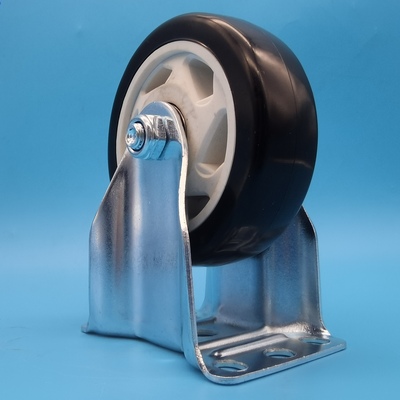

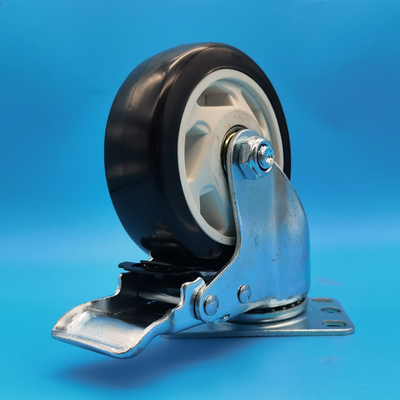

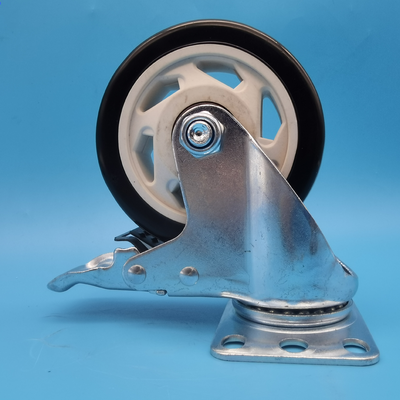

Stability Medium-duty Pp Polypropylene Wheels Singel Castors 3 " Lockable rigid Swivel Bakery Racks Picking Carts

Stability Medium-duty Pp Polypropylene Wheels Singel Castors 3 " Lockable rigid Swivel Bakery Racks Picking Carts

Brand Name:	Luma
Model Number:	CO1-H-5PP-332 / CO1-S-5PP-332 / C01-R-5PP-332
MOQ:	4
Price:	USD 1.14 brake /USD 0.92 Swivel/USD 0.74 Rigid
Payment Terms:	L/C,wechat,alipay
Supply Ability:	100000

Detail Information

Product Description

Detail Information

Place of Origin:

Zhongshan Guandong province China

Inches:

3 Inches

Braketype:

Brake/ Swivel/ Fixed

Productname:

Industrial Wheel Casters

Color:

Black / Grey / Blue

Usage:

Medical And Healthcare/ Commercial And Retail/Food & Beverage Industry/Chemical & Pharmaceutical/Logistics & Warehousing General Manufacturing

Material:

PP Polypropylene

Finish:

Zinc Plated

Bearingtype:

Ball Bearing

Wheeltype:

Brake/ Swivel/ Fixed

Mountingtype:

Top Plate

Sample:

1pcs ，price Add 50%

Packaging Details:

bags and cartons

Highlight:

3 Inch Medium Duty Castor

Medium Duty Castor Stable

Dual Axis Polypropylene Casters

Product Description

Stability Medium-duty Pp Polypropylene Wheels Singel Castors 3 " Lockable rigid Swivel Bakery Racks Picking Carts

Durability: Reinforced structure minimizes wobbling and stress on the wheel, extending service life in demanding environments.

The dual-axis design ensures smooth, straight-line tracking and reduces sway, making it ideal for transporting tall or unstable loads.

Robust Dual-Axis Construction

- Structure: Features two parallel axles within a reinforced bracket zinc-plated steel), providing superior stability and load distribution compared to single-axis designs.
- Wheel Material: Made from Polypropylene (PP), a rigid thermoplastic known for its excellent chemical resistance and low moisture absorption.
Enhanced Load & Stability
- Load Capacity: The dual-axis design significantly increases weight-bearing capacity, making it suitable for medium-duty applications with higher loads.
- Durability: Reinforced structure minimizes wobbling and stress on the wheel, extending service life in demanding environments.
Functional Design
- Sizes: Available in standard diameters such as 4-inch (100mm), 5-inch (125mm), and 6-inch (150mm).
- Mounting Options: Versatile mounting styles including flat plate and threaded rod to suit different equipment.

Product Specifications

Braking/Activation/Orientation	Locked / Swivel / Fixed
Size	3 inches
Wheel Material	PP Polypropylene
Base Plate Support Material	Q235
Bearing	6001 Bearing
Installation Height	105
Base Plate Size	94*62
Hole Distance	74.5*45
Box Size	4928.525cm

Matching Specifications

Set 1: 2 lockable + 2 fixed
Set 2: 2 swivel + 2 fixed

Stability Medium-duty Pp Polypropylene Wheels Singel Castors 3 " Lockable rigid Swivel Bakery Racks Picking Carts 1

Advantages
- Superior Stability: The dual-axis design ensures smooth, straight-line tracking and reduces sway, making it ideal for transporting tall or unstable loads.
- Chemical Resistance: Highly resistant to a wide range of acids, alkalis, and solvents, making them ideal for harsh environments like chemical plants or laboratories.
- Hygienic & Easy to Clean: The non-porous surface of PP prevents the accumulation of dirt and bacteria, ensuring compliance with strict hygiene standards in food and pharmaceutical industries.
- Cost-Effective Durability: Combines the economy of PP material with the long-lasting performance of a reinforced structure, offering excellent value.
Applications & Venues
- Food & Beverage Industry: Used on medium-duty bakery racks, ingredient handling carts, and beverage dispensing systems where stability and hygiene are paramount.
- Chemical & Pharmaceutical: Ideal for moving medium-weight chemical drums, laboratory equipment, and pharmaceutical carts where chemical resistance is critical.
- Logistics & Warehousing: Suitable for medium-duty platform trucks, order picking carts, and shelving systems in distribution centers.
- General Manufacturing: Applied in assembly lines, packaging stations, and other industrial settings requiring stable, chemical-resistant wheels for heavier loads.
