| Brand Name: | Luma |
| Model Number: | / |
| MOQ: | 4 |
| Price: | / |
| Payment Terms: | L/C,wechat,alipay |
| Supply Ability: | 100000 |
The 4 Inch (100mm) Heavy Duty Korean Style Red Plastic-Core PP Caster is built for budget-conscious buyers who still need serious load capacity. Featuring a red PP-on-PP dual-color injection molded wheel (Shore 95-98, D scale) on a plastic core, this caster delivers 200kg per wheel without the weight and rust risk of an iron core.

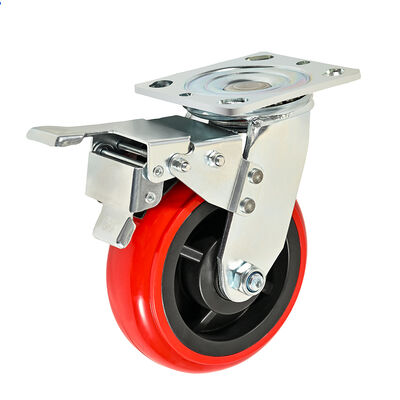

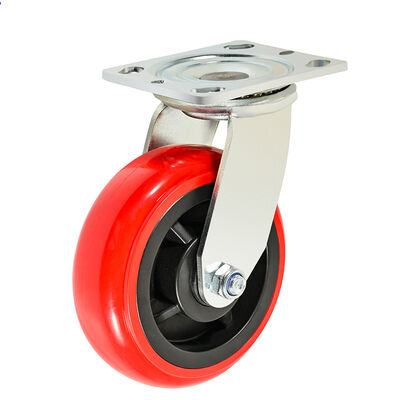

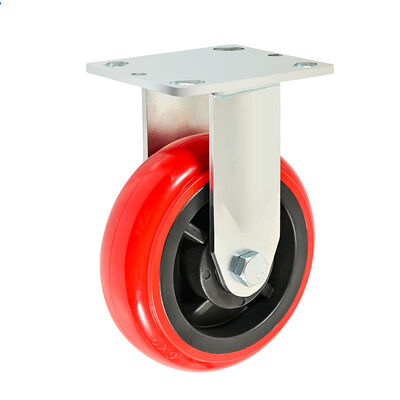

Unlike iron-core wheels, the all-plastic construction is completely rust-free, making it ideal for humid, wet, or corrosive environments. The 50mm flat/plain tread provides stable ground contact, while the 5.5mm galvanized Korean-style bracket ensures long service life. Available in Fixed (Rigid , Swivel , and Brake configurations.
| Parameter | 4" / 100mm Value |
|---|---|
| Model | B01-R/S/B-1KPP-450 |
| Wheel Diameter | 4 inch / 100 mm |
| Tread Width | 50 mm |
| Wheel Material | Red PP-on-PP (plastic core), Shore 95-98 |
| Wheel Color | Red (wheel) + Black (core) — dual color |
| Load Capacity | 200 kg / caster |
| Bearing | 6202 Ball Bearing |
| Installation Height | 143 mm |
| Top Plate | 115 x 100 mm |
| Hole Spacing | 82 x 72 mm |
| Hole Diameter | Ø13 mm |
| Base Plate Thickness | 5.5 mm |
| Bracket Thickness | 5.5 mm |
| Bracket Finish | Galvanized |
| Types | Fixed / Swivel / Brake |
| MOQ | 50 pcs |
The wheel uses PP-on-PP dual-color injection molding — a red PP tread layer over a black PP core. This gives a premium two-tone look while keeping the wheel 100% plastic, lightweight, and rust-free.
PP hardness of Shore 95-98 on the D scale means the wheel resists deformation under heavy static loads. It will not go flat like rubber, and it outlasts soft TPR in high-abrasion environments.
No iron core means significantly less wheel weight. A lighter wheel means lower rolling resistance and easier pushing, especially for female operators and elderly users.
The all-plastic wheel will never rust. Safe for outdoor use, wash-down areas, food processing, and marine/offshore environments where iron-core wheels would corrode.
PP is the most cost-effective caster wheel material. You get 200kg capacity at a fraction of the cost of PU or nylon. Perfect for price-sensitive projects and large volume orders.
The PP tread will not leave black marks on epoxy or concrete floors. Resists most acids, alkalis, oils, and cleaning chemicals.
The 4 inch size is the entry-level workhorse. Its 200kg capacity and compact 143mm installation height make it the first choice for small to medium equipment where floor space and load height are limited.
Workbench trolleys, tool chest dollies, parts bins, fixture carts.
Stock dollies, picking carts, order-picking trolleys, light pallet dollies.
Workbench carts, panel saw dollies, lumber carts, furniture dollies.
Garage storage racks, tool trolleys, tire dollies, parts carts.
Display stands, rolling racks, POS fixtures, shelving units.
Lab utility carts, instrument trolleys, specimen transport carts.
Food-grade trolleys (with food-grade PP option), prep carts, dish dollies.
We are a professional industrial caster manufacturer with more than 10 years of factory experience. We welcome OEM / ODM orders and can customize any combination of wheel and bracket to your requirements — including different materials, hardness, colors, and bracket thicknesses. Just send us your drawing, sample, or requirement and we will engineer the right caster for your application.
| Wheel Material | PP (red / black / any RAL) | TPR (grey) | Rubber (black) | PU (red/blue/black) | Nylon (white) | Cast Iron | Phenolic |
| Wheel Hardness | PP / Nylon: Shore 95-98 (D scale); TPR / Rubber / PU: Shore A 70-100 |
| Wheel Color | Any RAL color (red + black dual-color standard) |
| Core / Centre | Plastic core (standard) | Aluminium core | Iron core | No core |
| Bracket | Galvanized (standard) | Stainless 304 | Stainless 316 | Painted; Thickness: 4.0 / 5.5 / 6.0 / 8.0 mm (to your drawing) |
| Bracket Thickness & Top Plate | To your drawing (standard A05 bracket is 5.5 mm; thicker available for higher loads) |
| Mounting Type | Top plate (115x100, 82x72, Ø13 standard) | Threaded stem | Bolt hole | Expanding adapter | Central hole |
| Brake Type | No brake | Side lock | Total lock | Direction lock |
| Bearing | Plain | Roller | 6202 | 6203 | 6204 | 6205 | 6305 |
| Load Rating | From 100 kg up to 1,000 kg+ per caster |
| Special Features | Anti-static (ESD) | High-temperature | Food-grade | Explosion-proof | Dual-wheel | Spring suspension |
| MOQ | 50 pcs |
| Lead Time | 15-25 days (standard) / EO express service available |
| Sample | 1 pc free (freight collect) |
Q1: What is a red plastic-core PP caster?
It is a caster wheel made of polypropylene (PP) with a plastic core, using PP-on-PP dual-color injection molding (red tread + black core). Shore 95-98, lightweight, rust-free, and budget-friendly.
Q2: Is the 4 inch PP caster suitable for a workbench trolley?
Yes. With 200kg capacity and a compact 143mm installation height, it is ideal for workbenches, tool chests, and stock dollies.
Q3: Fixed vs Swivel vs Brake — which should I choose?
Fixed (定向) for straight-line stability. Swivel (万向) for 360-degree turning. Brake (刹车) locks the wheel in place. Many buyers use 2 fixed + 2 swivel/brake.
Q4: Will the PP wheel mark my epoxy floor?
No. PP is non-marking and will not leave black scuff marks on epoxy or concrete.
Q5: Can I get a custom color or hardness?
Yes. We offer any RAL color and can adjust Shore hardness. MOQ 50 pcs, free sample (freight collect), EO express service available.
Contact us today for a quote, free sample, or engineering consultation. As a professional industrial caster manufacturer with over 10 years of factory experience, we are ready to help you select the right size and configuration for your application.
